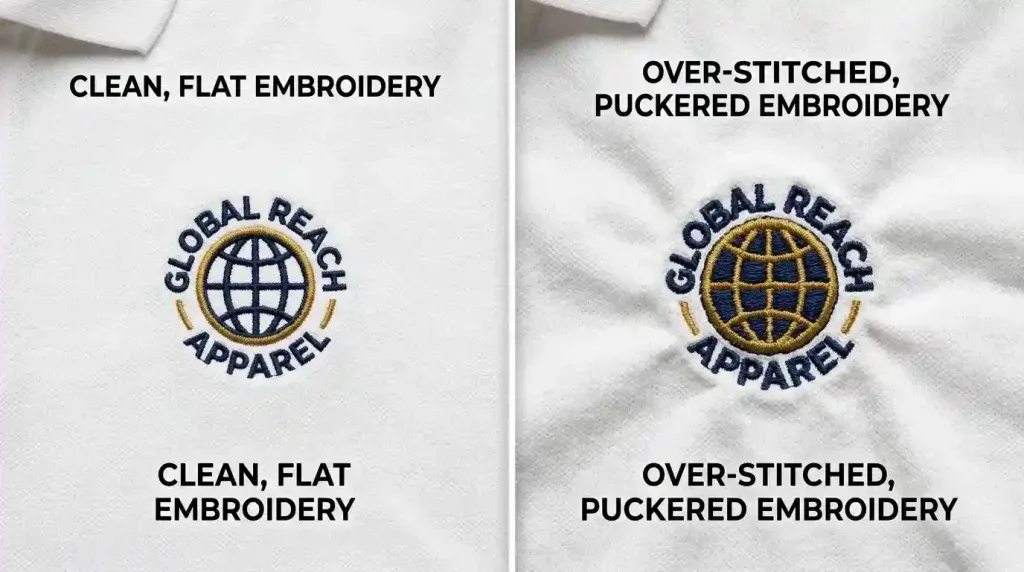

If your embroidered design is coming out stiff, raised or distorted, the reason is almost always embroidery stitch density set too tight. High stitch density is one of the most common embroidery digitizing mistakes and this guide shows you exactly how to identify it and fix it.

Over-stitching does not just look bad. It damages your fabric, breaks your needles and wastes production time. Whether you are running a single garment or a bulk order, getting the stitch density right is everything.

Why High Embroidery Stitch Density Makes Designs Bulky

When embroidery stitch density is the problem, it almost always comes down to one of three root causes.

Stitch Density Set Too Tight

Every fill and satin stitch has a spacing value measured in millimeters. Standard fill density sits around 0.40mm to 0.45mm. Anything tighter than 0.35mm packs stitches so close together that the thread has nowhere to go except upward, creating that stiff raised look on the finished garment.

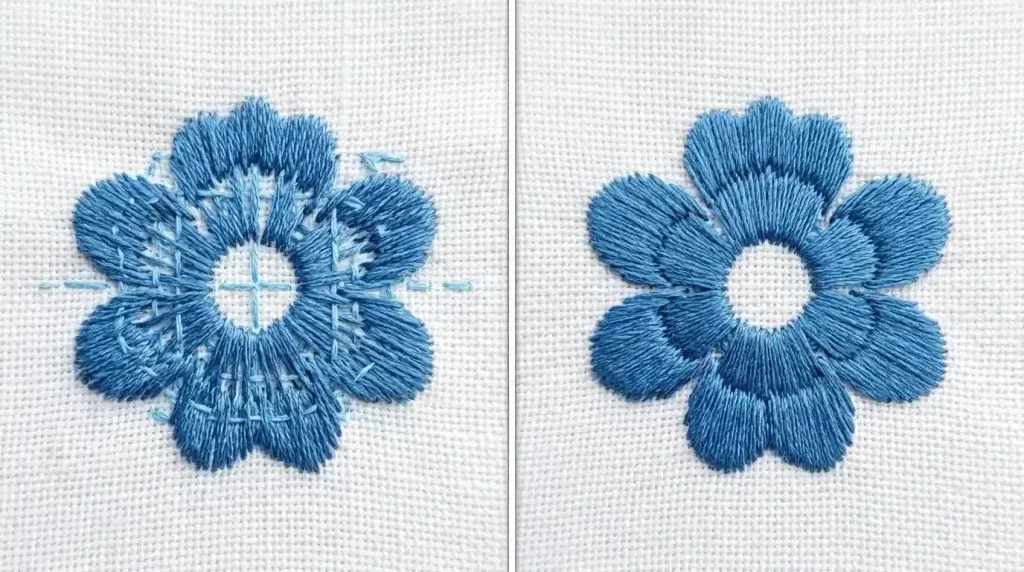

Too Many Underlay Layers

Underlay stabilizes the fabric before the top stitches begin. But adding too many underlay layers, especially on small designs, locks the fabric rigid before a single visible stitch is even placed. The design ends up sitting on a dense foundation that makes everything above it look and feel heavy.

Too Much Detail Forced Into a Small Size

Gradients, shadows and tiny lettering at small sizes require extra stitches to fill in the detail. At 2 or 3 inches, those extra stitches have nowhere to go and stack directly on top of each other, driving up the stitch count and the bulk simultaneously.

How to Fix Embroidery Stitch Density: Step by Step

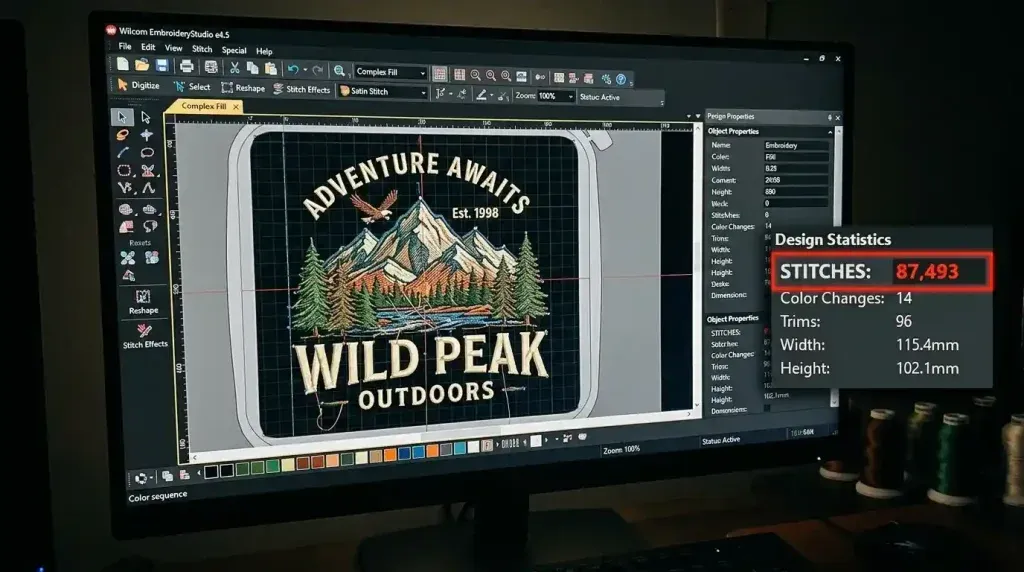

Step 1: Check the Stitch Count Against the Design Size

Before sending any file to the machine, check your stitch count against these benchmarks:

• Left-chest logo (3 to 4 inches): 6,000 to 12,000 stitches
• Cap design (2 to 2.5 inches): under 8,000 stitches
• Small text block (under 1 inch tall): under 1,500 stitches

If your count is higher than these ranges, the file is over-digitized. Open it in your digitizing software and inspect the density settings before the machine ever starts running. This is especially important for cap embroidery, where curved structured fabric is far less forgiving of excess stitch density than a flat shirt.

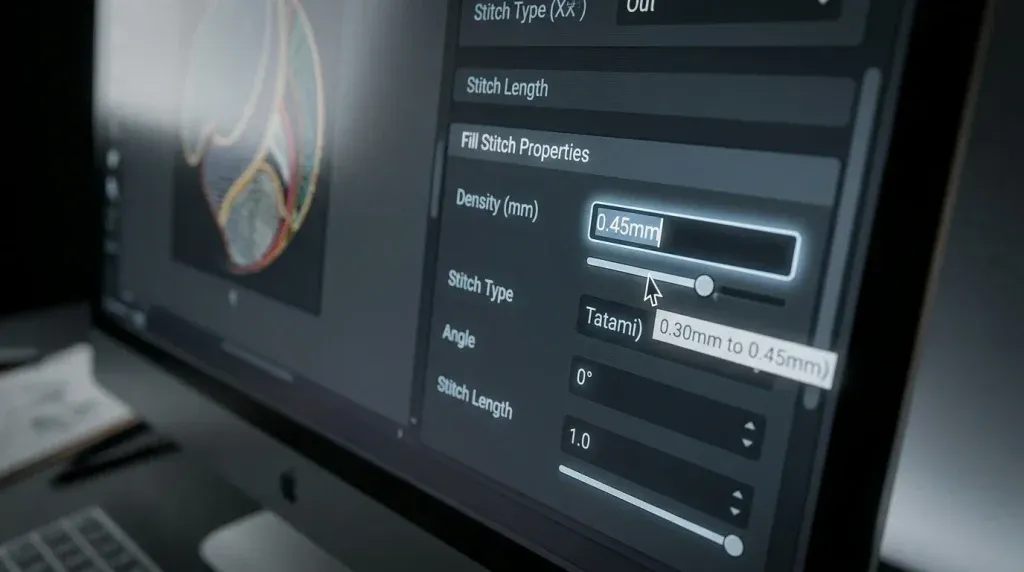

Step 2: Lower the Fill Stitch Density

Open the fill stitch properties for the over-packed area. Increase the spacing by moving from 0.30mm to 0.40mm or 0.45mm. This is usually enough to eliminate bulk without losing coverage.

Pro Tip: On stretchy fabrics like jersey or fleece, always go looser at 0.45mm to 0.50mm. The natural fabric movement between stitches provides coverage that tight spacing cannot improve and only makes worse.

Step 3: Reduce or Simplify the Underlay

For most standard designs on stable woven fabrics, a single run stitch underlay is enough. Only use edge walk plus zigzag combinations on large fill areas above 1.5 inches wide or on unstable fabrics like knits. Removing one unnecessary underlay layer can cut your total stitch count by 15 to 20 percent with zero visible difference in quality.

The same principle applies when digitizing for towel embroidery. Terry cloth pile already requires a heavier underlay approach, so adding further unnecessary layers on top creates extreme bulk that distorts the finished design entirely.

Step 4: Simplify the Design Elements

If your design includes gradients or blended shadows at a small size, remove them. What looks smooth on a software screen looks heavy and stiff on real fabric. Simplify to solid color zones and clean outlines. The cleaner the design, the lower the stitch count, and the better the final result on any garment.

Quick Checklist: Embroidery Stitch Density Before Every Production Job

• Stitch count matches the correct design size benchmark
• Fill density is 0.40mm or above for stable woven fabrics
• Underlay is minimal with one layer for small designs
• No unnecessary gradients or shadows at small sizes
• File has been tested on a sew-out before full production begins

When to Have the File Professionally Re-Digitized

Sometimes the file is so over-engineered that adjusting settings is not enough. If you have reduced density and the design is still stiff and raised, it needs to be rebuilt from scratch with the correct stitch logic applied from the beginning.

At Sassy Digitizing, every file is manually digitized using Wilcom software with embroidery stitch density tested against your specific fabric type. If a file you received elsewhere is causing bulk or puckering, our team will re-digitize it correctly and get your production running cleanly. Check our pricing page as re-digitizing starts from just $15, or view finished examples in our portfolio.

Frequently Asked Questions About Embroidery Stitch Density

What is embroidery stitch density?

Embroidery stitch density is the spacing between individual stitches in a fill or satin area, measured in millimeters. A tighter spacing means more stitches packed into the same area. Standard fill density sits between 0.40mm and 0.45mm. Anything tighter than 0.35mm overpacks the stitches, causing the design to become stiff, raised and bulky on the finished garment.

What is the correct stitch count for a left-chest embroidery logo?

A left-chest logo measuring 3 to 4 inches should have between 6,000 and 12,000 stitches. A cap design at 2 to 2.5 inches should stay under 8,000 stitches. A small text block under 1 inch tall should stay under 1,500 stitches. Anything higher than these ranges indicates an over-digitized file that needs density corrections before production.

Why is my embroidery design stiff and raised?

Stiff raised embroidery is almost always caused by embroidery stitch density set too tight, too many underlay layers, or too much detail forced into a small design size. When stitches are packed tighter than 0.35mm spacing, the thread has nowhere to go except upward, creating a hard raised surface instead of a flat clean result.

How do you reduce stitch count in embroidery without losing quality?

To reduce stitch count without losing quality, increase fill spacing from 0.30mm to 0.40mm or 0.45mm, remove unnecessary underlay layers, and simplify gradients or blended shadows at small design sizes. Removing one unnecessary underlay layer alone can cut total stitch count by 15 to 20 percent with no visible difference in the finished result.

Summary

High embroidery stitch density is never a machine problem. It is always a file problem. Fix the density, clean up the underlay, simplify the design elements and your embroidery will lie flat and clean every single time. When in doubt, have it professionally re-digitized and save yourself the wasted garments and production downtime.
